The cable comes with a mini CD with drivers and Toyota Techstream software; it is advertised as “Newest V8.30.023”. The “newest” refers to the version of bundled Techstream, rather than the cable firmware. My Windows 64-bit Computer: A laptop running 64-bit version of Windows 7/8. Jun 24, 2016 - Normally i install the MINI VCI FOR TOYOTA TIS Techstream on windows xp computer, but now i have changed my computer system to win 7.


This is for anyone that is currently trying to use Techstream software to change dealer settings on their BRZ/FRS with a MINI-VCI cable and software. I know there are a few threads out there already on the subject, but they don't contain any useful guides on how to actually succeed in activating and using this software, it's mostly just download links.
I got stuck doing Google searches for about 2 hours trying to figure out if this could be done on a Windows 64-bit computer without the use of annoying Dual Boot or Virtual Machines on XP, and despite what most of these threads say, IT CAN BE DONE! The software works on any OS, but the drivers are the problem so instead they just have to be downloaded manually. I hope this helps some of you guys out.
Download all of the files from this Dropbox link: https://www.dropbox.com/sh/mztf3wrqa...i5qy1xpoa?dl=0

(Even if you have the mini cd, and have the software already, you still need to download the 'mvci-x64.reg' and 'Techstream_Update_V8.10.021.exe' files from that link. Also, make sure your cd comes with the same version that is listed as mine; 8.00.034. And completely uninstall any traces of previous attempts to download the software)Toyota mini vci 64 bit download
Equipment Needed:
  1. MINI VCI cable for TOYOTA TIS Techstream. I bought mine from Amazon for $25. The cable is about 4’ long, with translucent casing and “MINI-VCI J2534 Standard OBDII Communication Interface” sticker:
    The cable comes with a mini CD with drivers and Toyota Techstream software. Mine was advertised as “Newest V8.00.034 MINI VCI for TOYOTA TIS Techstream Diagnostic Cable & Software”. The “newest” refers to the version of bundled Techstream, rather than the cable firmware, as cable shows serial number “MVCI006000001” and firmware version 1.4.1, which is widely known as “cheap clone of the original XHorse MVCI cable”.
  2. A laptop running 64-bit version of Windows 7/8. Mine is actually Windows 7 x64, but for Windows 8 the configuration procedure should be identical.

The content of bundled mini-CD:
http://www.toyota-4runner.org/attach...1&d=1379402148
The Techstream, MVCI drivers and TIS Key all can be found on the mini disk, but I will leave a .zip download containing them if you guys need them.
Steps:
  1. Download and install a trial version of WinRAR if you don't already have it.
  2. Using WinRAR Unpack the following files from either the mini-CD or the download to a temp folder on your hard drive (Use c:temp).
    - Toyota Techstream 8.00.034
    - Techstream_Update_V8.10.021
    - MVCI Driver for TOYOTA
    - TIS KEY
  3. Now open WinRAR again. Using the program, navigate to the temp folder with unpacked files and double click the TISKey.exe in WinRAR.

Mini Vci Firmware


http://im.toyota-4runner.org/attachm...ack-tiskey.jpg
The TISKey.exe is actually a self-extracting (SFX) RAR archive file. Once executed, it simply unpacks and copies the IT3System.ini file to the Techstream folder. Extract the IT3System.ini file to desktop for now.
Installing MVCI Driver for TOYOTA

Toyota Mini Vci 64 Bit

:
This is the step most people stumble on as “MVCI Driver for TOYOTA.msi” installer indeed does not work on Windows x64. The workaround is to install it manually, as follows:
Open the Command Prompt in Administrator Mode, and run the following command line:
msiexec /a 'C:tempMVCI Driver for TOYOTA.msi' /qb TARGETDIR=c:tempmvci
This will extract the content of the MSI file to the c:tempmvci folder. Go ahead and close the Command Prompt window, and open up the c:tempmvci folder :
http://im.toyota-4runner.org/attachm...packed-msi.jpg
  1. Delete the “MVCI Driver for TOYOTA.msi” there. (Now go into C:Program Files (x86) and then create a new folder called 'XHorse Electronics' and then inside of that folder create another called 'MVCI Driver for TOYOTA TIS') Then copy the whole content of c:tempmvci to 'C:Program Files (x86)XHorse ElectronicsMVCI Driver for TOYOTA TIS'
  2. Plug the MINI VCI cable to the USB port.
  3. Open the Device Manager and locate the two failing devices in the list. Both will appear with yellow icon (usually under “Other”), indicating that Windows failed to install drivers for them. Now, right click each failing device, select Install Driver, then “Browse my Computer…” and point it for 'C:Program Files (x86)XHorse ElectronicsMVCI Driver for TOYOTA TIS' (enable the “include subfolders” flag). Click “Next” and wait until drivers are installed.
    You should now see two new devices: “Universal Serial Bus ControllersUSB Serial Converter” and “Ports (COM & LPT)USB Serial Port (COM5)”.
  4. Run the FirmwareUpdateTool.exe from the 'C:Program Files (x86)XHorse ElectronicsMVCI Driver for TOYOTA TIS'. Click “Device Info”. You should see the “device connected” screen like this:
http://im.toyota-4runner.org/attachm...atus-check.jpg
    1. If you see this, it means your MINI VCI is up and running under Windows x64 and can be used by other programs, such as Techstream.
      IMPORTANT: Some people have reported that updating firmware on this “cheap clone” cable may render it dead. So, the Firmware Update Tool should NOT be used for anything, but checking that the device is connected and working properly.
  2. Now install the Techstream software using 'Techstream 8.00.034.exe' and then after installation, open up the 'Techstream_Update_V8.10.021.exe' file to update it. DO NOT launch it yet.
    To activate it, drag the IT3System.ini you extracted before to the desktop over into 'C:Program Files (x86)Toyota DiagnosticsTechstreamEnv'. When prompted, overwrite the preexisting file with the new one you are dragging over.
  3. Registry Hack: for Techstream to recognize MINI-VCI under Windows x64, the Registry has to be modified as:

    Windows Registry Editor Version 5.00
    [HKEY_LOCAL_MACHINESOFTWAREWow6432NodePassThruSu pport.04.04]
    [HKEY_LOCAL_MACHINESOFTWAREWow6432NodePassThruSu pport.04.04XHorse - MVCI]
    'Name'='XHorse - MVCI'
    'Vendor'='XHorse ELECTRONICS Co.,Ltd.'
    'ConfigApplication'='C:Program Files (x86)XHorse ElectronicsMVCI Driver for TOYOTA TISFirmwareUpdateTool.exe'
    'FunctionLibrary'='C:Program Files (x86)XHorse ElectronicsMVCI Driver for TOYOTA TISMVCI32.dll'
    'APIVersion'='04.04'
    'ProductVersion'='1.1.0'
    'ProtocolsSupported'='J1850VPW:1, J1850PWM:1, CAN:1, ISO9141:1, ISO14230:1, ISO15765:1'
    'J1850VPW'=dword:00000001
    'J1850PWM'=dword:00000001
    'ISO9141'=dword:00000001
    'ISO14230'=dword:00000001
    'CAN'=dword:00000001
    'ISO15765'=dword:00000001
    'SCI_A_ENGINE'=dword:00000000
    'SCI_A_TRANS'=dword:00000000
    'SCI_B_ENGINE'=dword:00000000
    'SCI_B_TRANS'=dword:00000000

    The attached 'mvci-x64.reg' contains the *.REG file that has to be imported to the Registry (all you have to do in this step is just extract the file to the desktop, right click, then click Merge)
    A trick here is the 'Wow6432Node' in key path, which is the location the 32-bit applications running on 64-bit OS get redirected to when accessing Registry. The 'PassThruSupport.04.04' seems to be the place Techstream looks into for available VIMs (sub-keys appear in the 'VIM Select' menu in Techstream).

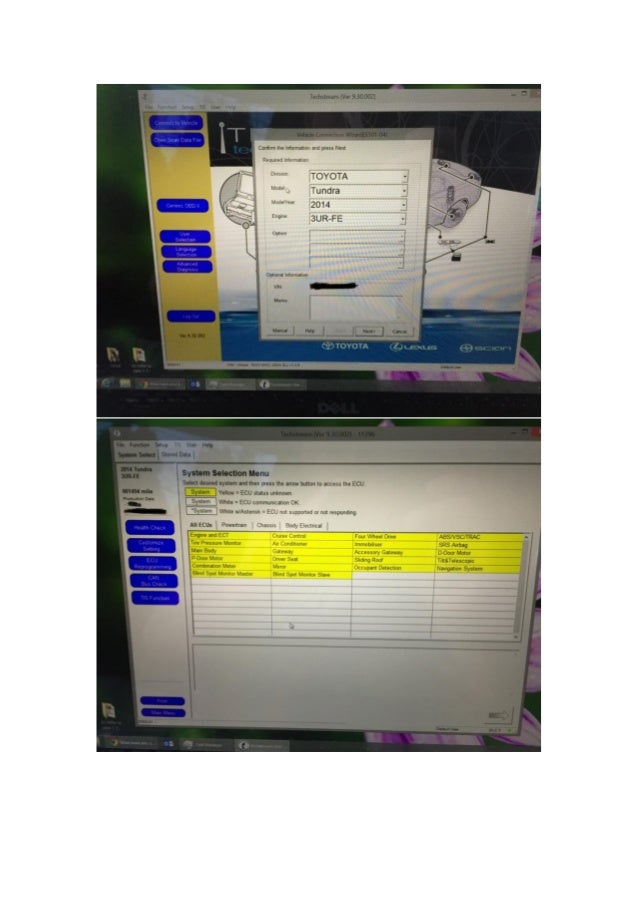

  4. Run Techstream. Go to Setup VIM Select menu and select the “XHorse - MVCI”
  5. Connect MVCI cable to your car’s OBDII interface, turn ignition on, then click “Connect to Vehicle” in Techstream. Wait. Then wait again (by the way, you'll be doing that a lot with this cable http://im.toyota-4runner.org/images/smilies/smile.gif). If everything works, you will be prompted to confirm car year/model after which you'll get to the diagnostic interface.
Mini vci firmware
Just to clear it up, you do not have to register this software after this is all done, it is yours forever (almost). Mostly all of the customizable options can be accessed with this update so I would not mess with it and try to get anything new as it is not needed!
I hope this guide works for you guys, it sure as hell saved me a whole lot of frustration when I found it. If you have any questions regarding installation just comment and let me know!
